Subsoil Drainage Newcastle
Subsoil drainage systems that stop water pooling and protect your foundations, installed by licensed Newcastle plumbers.
Subsoil Drainage for Newcastle Homes and Properties
Subsoil drainage is an underground system that catches water in the ground and moves it away from your house before it causes damage. The main part is an ag line, a slotted agricultural pipe that sits in gravel and is wrapped in geotextile fabric, which lets water in but keeps soil out. Instead of pooling against the slab, the water is carried off to a proper outlet.
It’s a common need in Newcastle. Homes near the beaches sit on sandy soil, a lot of the inner and western suburbs are on reactive clay that moves as it wets and dries, and the low-lying blocks near the creeks and harbour are slow to drain after heavy rain. Each one causes different problems, and each needs the system set up to suit it.
We’ve been installing subsoil drainage around Newcastle for 25 years, and we cover the Central Coast and Port Stephens as well. We’re fully licensed and insured. We work out what’s actually causing the problem before we quote, and you get that quote in writing before we start. If the job turns up a related plumbing issue, the same team can take care of it as part of our Newcastle plumbing services.
Signs Your Property Needs Subsoil Drainage
If water has nowhere to go, it tends to show up in a few familiar ways. Any of these is worth a look.
- Water pooling on the lawn: surface water that sits for hours or days after rain usually means the ground can’t clear it on its own.
- Water against the slab or footings: moisture gathering around the base of the house puts steady pressure on the foundations and can lead to movement over time.
- A damp or musty subfloor: trapped moisture under the house points to poor drainage around the perimeter, and it’s best sorted before it affects the structure.
- Rising damp on internal walls: damp creeping up the walls often traces back to water sitting in the soil against the footings.
- Water building behind a retaining wall: saturated ground adds weight and pressure to the wall, so drainage behind it protects both the wall and the slope.
- Cracks from clay movement: reactive clay that keeps wetting and drying shifts under the house, and steadying the moisture around the footings helps reduce it.
Subsoil Drainage Systems We Install in Newcastle
The right setup depends on your block, the soil and where the water can go. On most jobs, the backbone is an ag line, perforated pipe in a gravel bed wrapped in geotextile, sometimes run as a French drain, a gravel-filled trench that intercepts water around foundations, gardens and low spots.
From there, we add what the site needs. Spoon drains and surface channels catch run-off across paving and driveways, stormwater and inspection pits collect the water and give us access to flush and check the system later, and interceptor drains sit across a slope to stop run-off before it reaches the house. On low-lying blocks where water can’t fall to an outlet on its own, we fit a sump pump to lift it clear.
Our Subsoil Drainage Services
Subsoil drainage isn’t a single job, so we treat each stage as its own service. Whether you’re putting in a brand new system, working out why an existing one has stopped doing its job, replacing a setup that was never big enough, or keeping a good system in shape, there’s a service built for it.
Replacing undersized or ageing setups with a system that keeps up.
How We Install Subsoil Drainage
Every job starts with working out where the water is going and why, not with digging. Here’s how the work runs.
- Site assessment and diagnosis: the property is assessed to find where water is collecting, where it’s coming from, and the fall available to move it away.
- Design: we design the system to the right grade for your block, setting the line, the depth and the outlet.
- Excavation: the trench is dug along the planned route to the depth the fall requires.

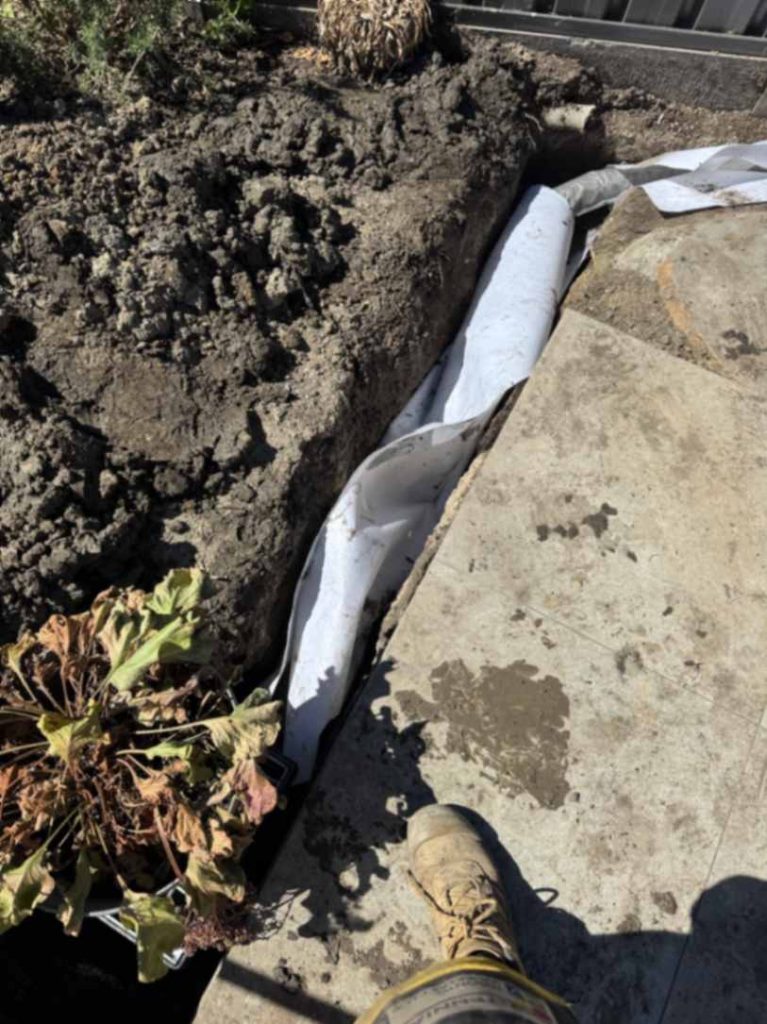

- Laying the line: perforated ag pipe is laid on a gravel bed and wrapped in geotextile to keep silt out and water flowing.

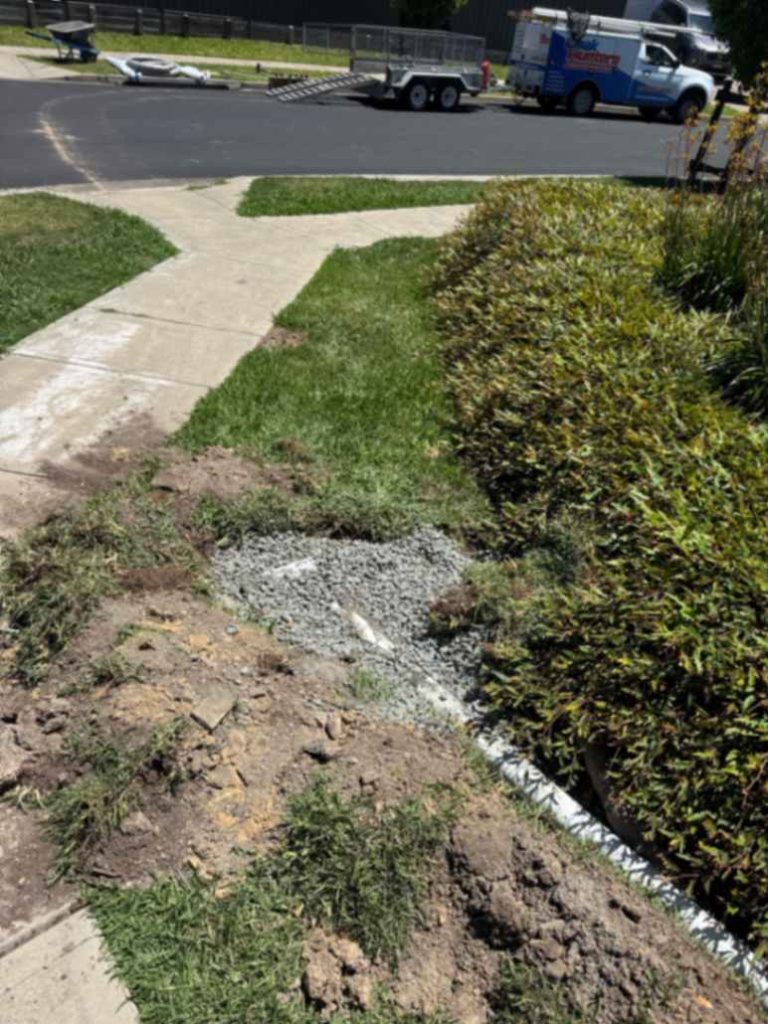

- Backfill and reinstatement: the trench is backfilled and the surface made good.
- Connection and testing: the system is connected to a legal outlet, the kerb, street or stormwater, and the flow is tested before we finish.
All work is carried out to the relevant Australian Standard, AS/NZS 3500.3 for stormwater drainage, and the National Construction Code (NCC) requirements for site preparation and drainage, so the system is compliant as well as effective.
Recent Project: Subsoil Drainage in Fletcher
Water was pooling around a Fletcher home and putting the garden and foundations at risk, with old drainage that just couldn’t shift it. See how our team turned that around in our Fletcher subsoil drainage case study.
What Sets Leak Hunters Apart
Why Choose Leak Hunters?
Leak Hunters are your trusted local plumbing experts servicing Newcastle and surrounding suburbs. We are dedicated to providing top-quality plumbing solutions with a focus on customer satisfaction and exceptional workmanship.
Licensed & Insured
We work under contractor licence #156870C, verified with NSW Fair Trading. Fully insured on every job.
25 Years of Local Experience
Our team has been finding and fixing leaks in Newcastle homes for over 25 years. When others can’t find the leak, we do.
Payment Plans for Large Jobs
For larger jobs like leak detection, drainage work, and shower repairs, we offer flexible payment plans. Ask us when you call.
Transparent, Fixed Pricing
A clear, upfront quote before any work begins. What we quote is what you pay. No hidden charges, no invoice surprises.
Specialist Detection Equipment
Thermal imaging cameras, acoustic equipment and moisture meters to locate leaks others can’t find.
10% Off Senior Discount
We offer discounts for eligible customers and selected services. Call our team to find out what’s currently available.
Newcastle, the Central Coast & Port Stephens
Areas Our Team Services
We resolve subsoil and yard drainage problems across Newcastle, the Central Coast and Port Stephens. From waterlogged yards to moisture under the home, our team assesses the full site conditions before recommending the right fix.
Merewether | Bar Beach | Cooks Hill | Hamilton | New Lambton | Kotara
Our home base for drainage work, tackling waterlogged yards and subsoil moisture across the city, the beaches and the Lake Macquarie side.
Terrigal | Erina | Tuggerah | Wyong | Avoca Beach | The Entrance
Subsoil and yard drainage are assessed and repaired from Gosford through the coastal suburbs, with the full site checked before we quote.
Raymond Terrace | Nelson Bay | Shoal Bay | Soldiers Point | Corlette
Drainage problems around homes across the bay and peninsula suburbs, diagnosed at the source, with upfront pricing and no call-out fee.
SUBSOIL DRAINAGE PLUMBING SERVICES Newcastle
Frequently Asked Questions
What is subsoil drainage?
It's an underground system of perforated pipe, gravel and geotextile that collects groundwater and surface water and carries it away from your foundations to a legal outlet. The pipe, an ag line, sits below the surface and runs on a fall, so water keeps moving away from the house instead of building up around it. It's the standard fix for a yard or foundation that stays wet after rain.
How does a subsoil drain work?
Water in the soil seeps through the slots in the ag pipe, which sits in gravel and is wrapped in geotextile fabric to block silt. The pipe runs on a slight fall, so gravity carries the water along it to an outlet at the kerb, street or stormwater. Once it's in, it works quietly in the background with no power and very little upkeep.
How do I know if I need subsoil drainage?
Common signs are water pooling on the lawn, damp against the slab, a musty subfloor or water building behind a retaining wall. Reactive clay soils that crack and shift during dry spells are another red flag, since they retain water against the footings. If any of those sound familiar, book a site assessment and we'll find the cause before recommending anything.
What's the difference between subsoil and subfloor drainage?
Subsoil drainage manages groundwater and surface water around the property and foundations. Subfloor drainage and ventilation deal with damp in the space under suspended floors, which is a different job, covered by our waterproofing service. The two often get confused, so it's worth checking which problem you actually have before booking work.
How much does subsoil drainage cost?
It depends on the length and depth of the run, site access, how far the outlet is, the soil or rock involved, and whether a pump is needed. A short run on an easy block costs far less than a full-property system across heavy clay. We assess the site and give you a written quote before any work begins, so there are no surprises.
How long does a subsoil drainage system last?
A well-built system lasts for decades. The pipe, gravel and geotextile don't wear out in normal use, so the main thing is keeping the inspection pits and lines clear. A quick routine maintenance check every so often is enough to keep it draining as it should.
Which areas do you install subsoil drainage in?
Newcastle is our home base, and our team also installs subsoil drainage across the Central Coast and Port Stephens, from the coastal blocks to the low-lying and clay-heavy areas inland. You can see the full list on our service areas page, and if you're not sure whether we reach you, just give us a call.
